TERM-seal Ura-Fen Shield TWB Installation Diagrams

TERM-Seal Termite Management Systems Certified Australian--

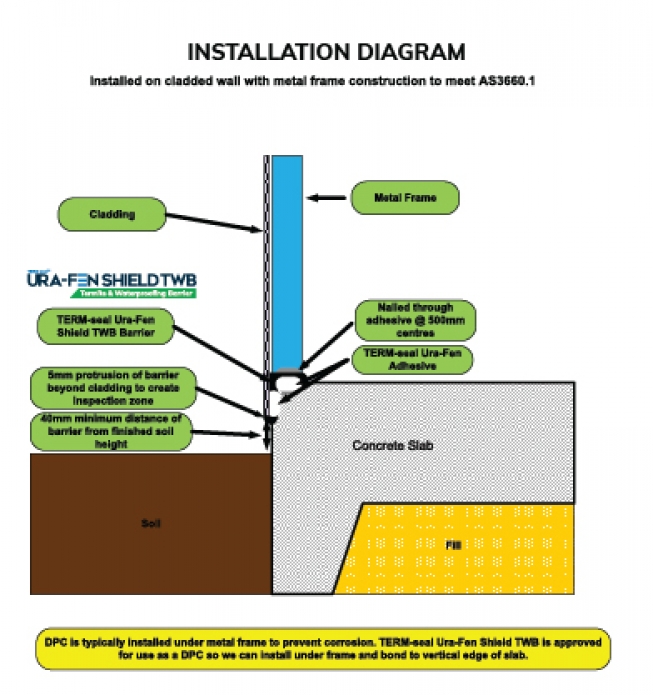

Cladded Metal Frame
TERM-Seal Termite Management Systems Certified Australian--

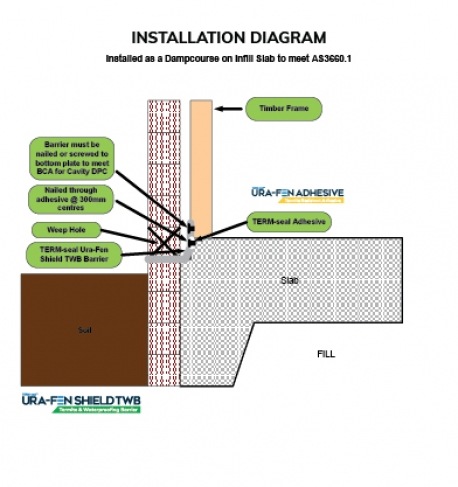

Dampcourse Infill Slab
TERM-Seal Termite Management Systems Certified Australian--

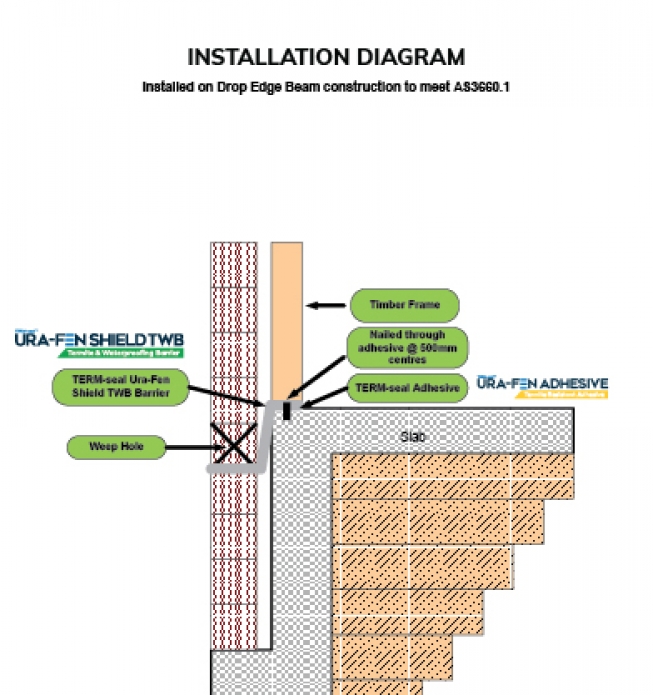

Dropedge Beam
TERM-Seal Termite Management Systems Certified Australian--

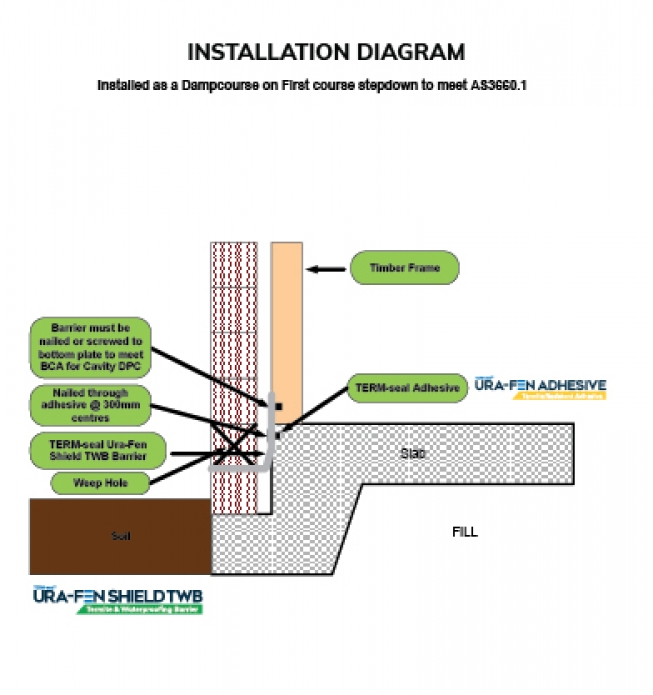

Side-Load As Dampcourse
TERM-Seal Termite Management Systems Certified Australian--

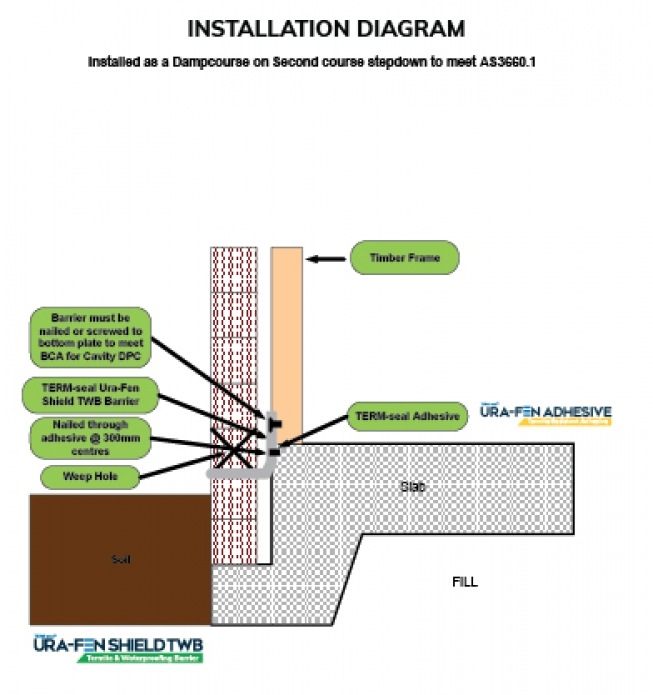

Side-Load As Dampcourse 1
TERM-Seal Termite Management Systems Certified Australian--

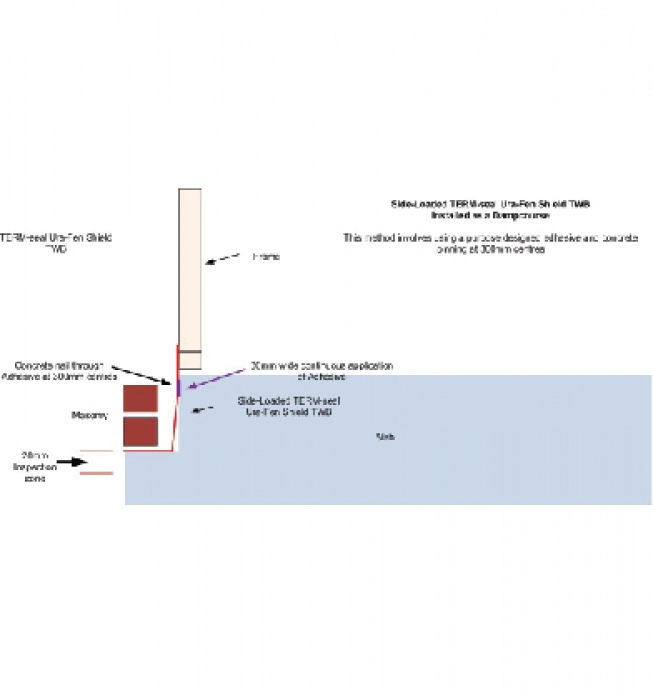

Side-Load As Dampcourse 2
TERM-Seal Termite Management Systems Certified Australian--

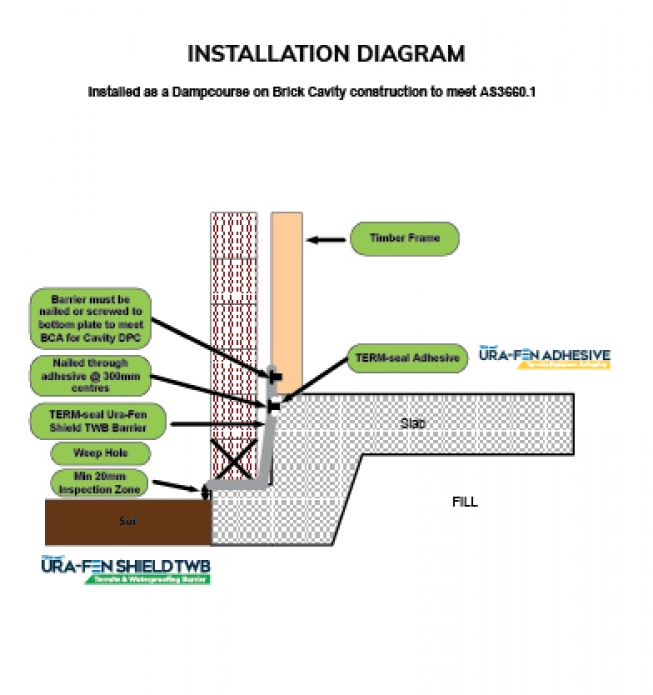

Side-Loaded for Brick Cavity
TERM-Seal Termite Management Systems Certified Australian--

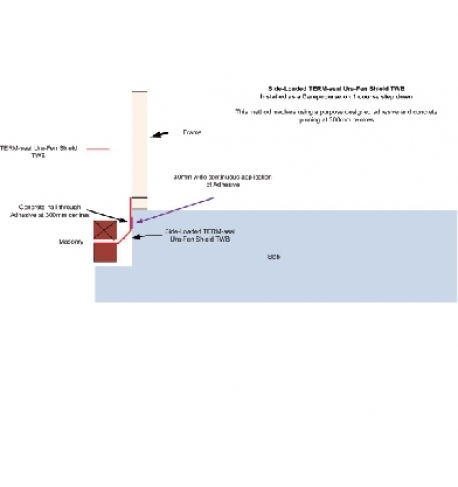

Side-Loaded for First Course
TERM-Seal Termite Management Systems Certified Australian--

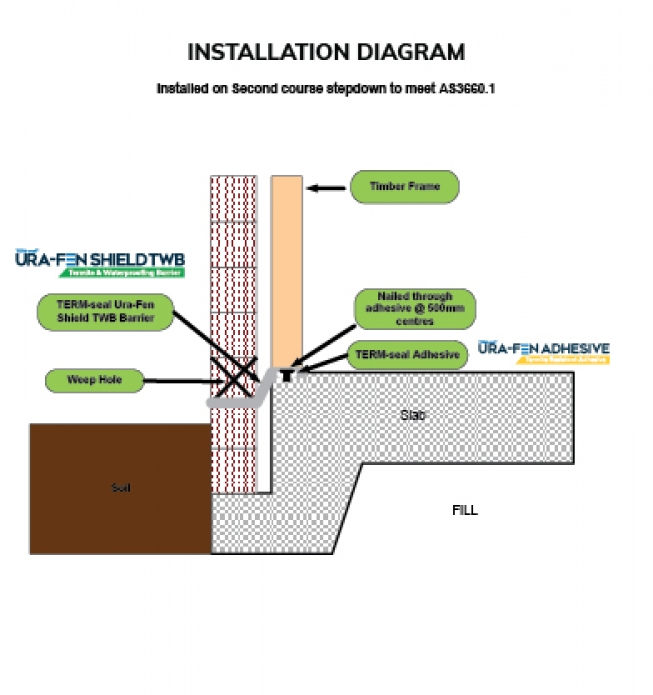

Side-Loaded Second Course
TERM-Seal Termite Management Systems Certified Australian--

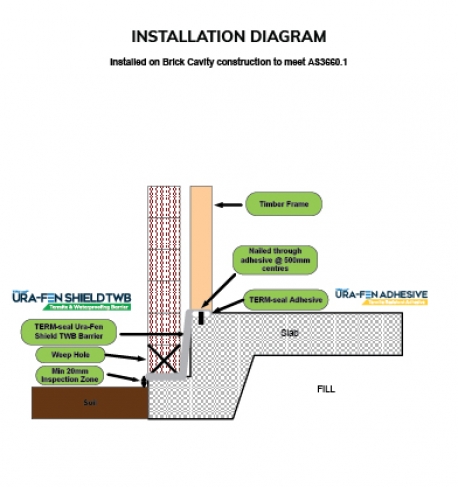

Top Loaded Brick Cavity
TERM-Seal Termite Management Systems Certified Australian--

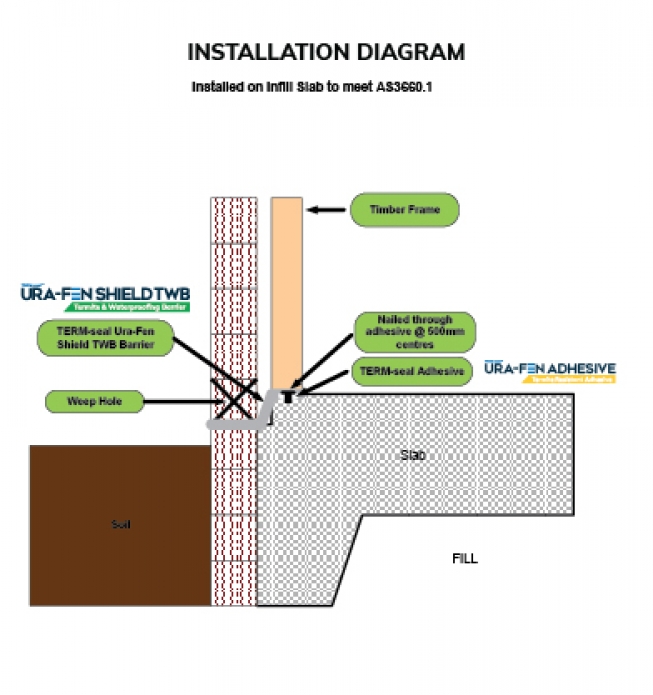

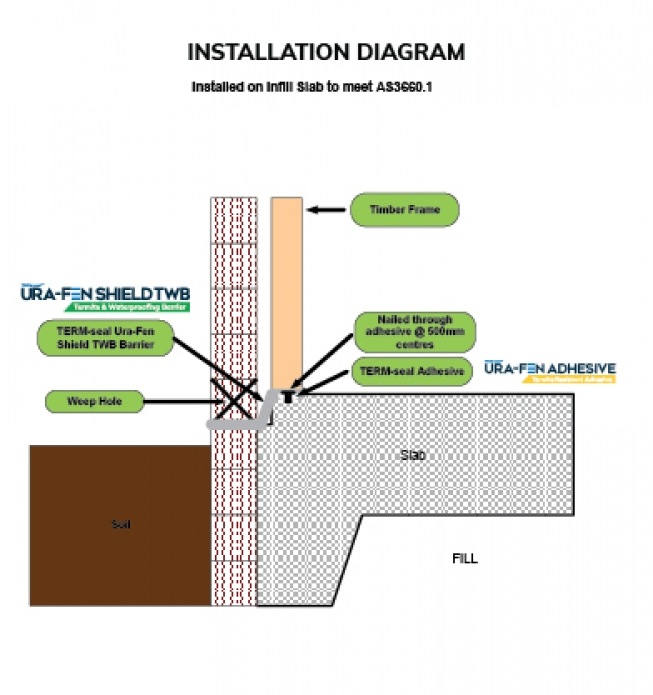

Top-Loaded Infill Slab
TERM-Seal Termite Management Systems Certified Australian--

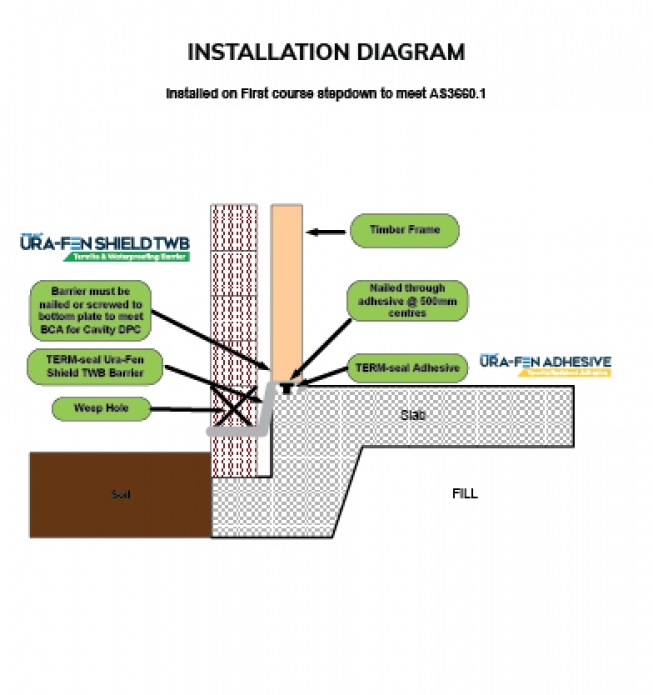

Top-Loaded for First Course
TERM-Seal Termite Management Systems Certified Australian--
Top-Loaded for Second Course
